Field-installable Armoured Protection Program - FAPP -
Combat Proven - Field Installable - Cost Effective
FAPP is a combat-proven solution to real world issues, with established supply chains, produced in quantities and ready to meet your demands TODAY.
Due to its modular design concept, FAPP not only provides short-term and reliable solutions to your security needs, but above all our modular design concept offers a variety of vehicle concepts, based on a world-renowned platform.
Designed to be truly field installable FAPP utilizes the HUMMWV 13-Series Chassis, this rugged, battle-proven Chassis provides an excelled platform for a 4x4 light tactical Combat vehicle.
Our modular design approch is unique in our industry and allows for a wide variety of vehicle concepts.
From troop carrier, medevac or reconnaissance vehicle, to be implemented on this platform.
providing kinetic energy threat and blast protection, according to NATO AEP-55 STANAG 4569 -Level 1-
combat proven modular desgin with increased protection against air burst & FPV drone attack
mission ready in less then 24hr, assembly process requires no special tooling or welding of armoured plate
offering maximum versatility, unique modular design approch for a wide variety of vehicle concepts.
battle proven reliability in the harshest, most demanding operational environments
based on the proven HUMMWV 13-Series chassis, the FAPP offers simplified maintenance, and fleet sustainment
Mission - Ready Today
The FAPP installation only requires minimal changes to the original HUMMWV (M998 A0-A3) bodywork.
- 3-4 men hours to carry out the necessary installation preperation
- 10-15 men hours to convert a standard HUMMWV (M998 A0-A3) to FAPP 2 TAL or FAPP 4 TAPC

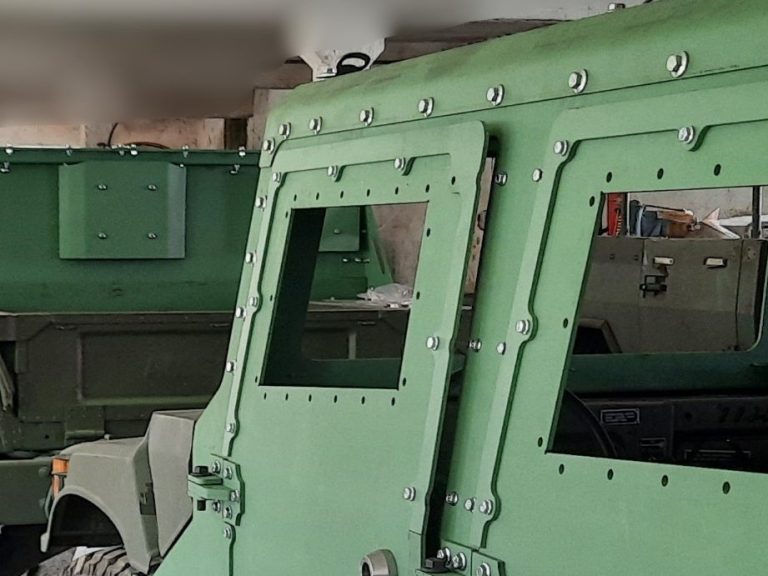

Our modular design approch is unique in our industry and the assembly process requires no special tooling, jigs or welding of Armoured Steel.
Due to its unique Design all FAPP parts are SELF-Alining/Interlooking and none interchangeable.
FAPP incorporates several additional safety features and technical upgrades, as standard:
- ROPS (internal rollover protection structure)

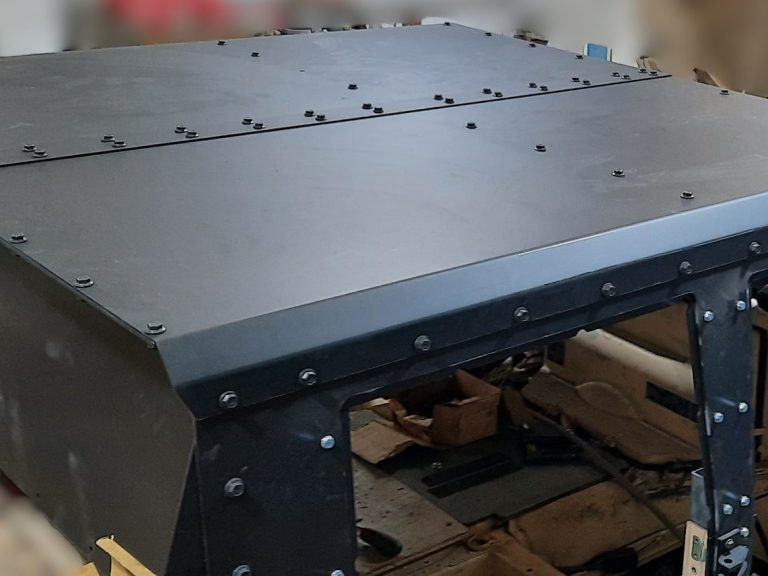

- multi layer spaced Roof armor, for increased protection against air burst & FPV drone attack

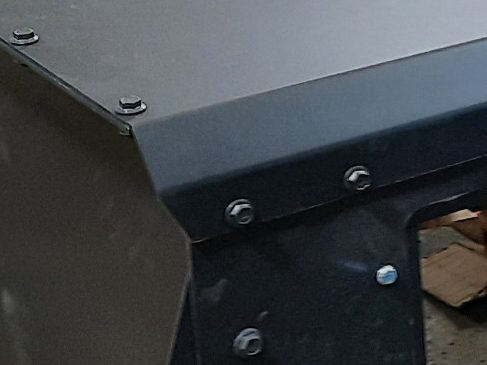

- double & triple overlapped plate joints

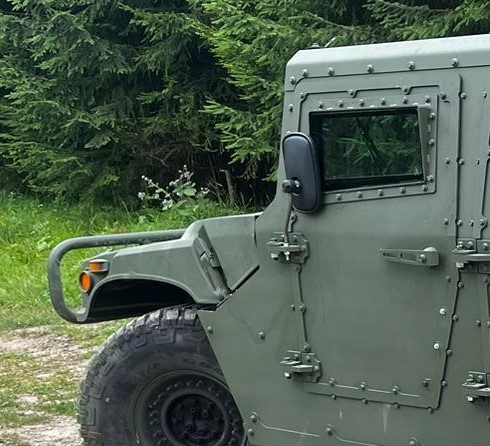

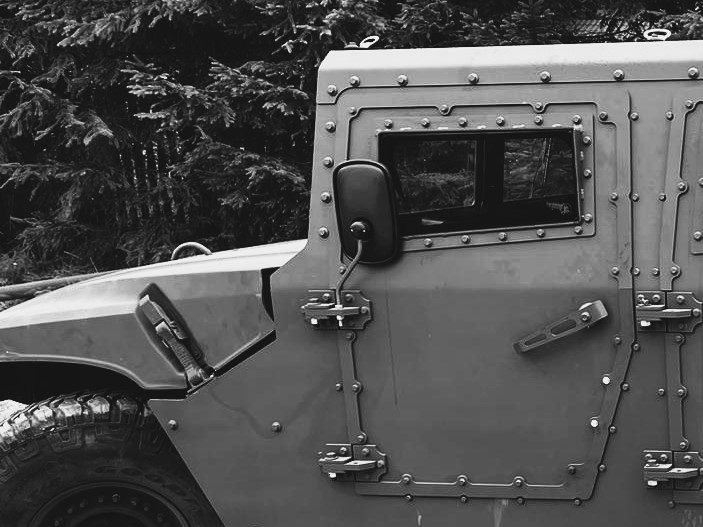

- triple latch combat door lock
- large capacity Cabin ventilation system, max 2800m³/hr
Optional upgrade:
- upgrade Front bumper
- spare-wheel lifter, rear mounted
- upgraded Cooling System, incl. high flow Radiator pack
- upgraded Diesel fuel filter system
- FAPP Body Kit supplied as flat pack, ready for Assembly
Body configurations:

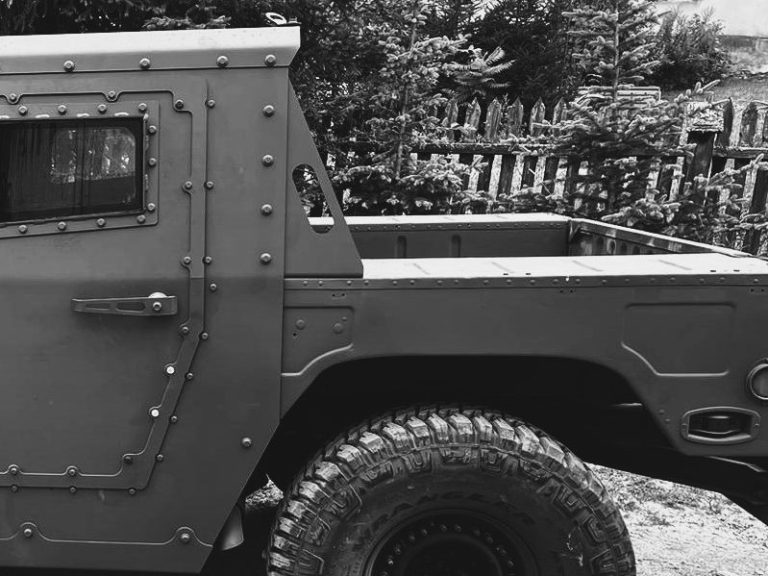

FAPP 2 TAL
Pick-up, 2 seater armoured Cab with exstended load bed
FAPP 4 TAPC
APC, 4 seater armoured Body with load bed

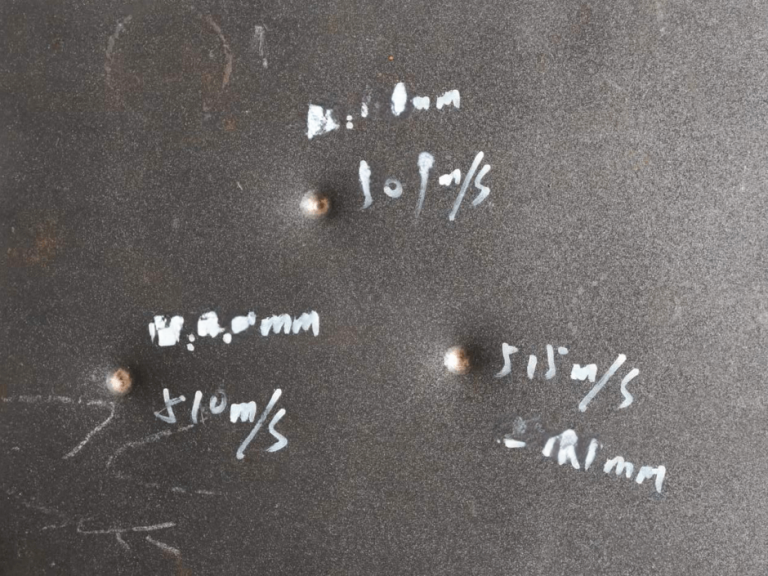

Ballistic Protection
Only made from premium quality components and certified ballistic materials, FAPP offers protection against kinetic energy threats and blast protection in accordance with
NATO AEP-55 STANAG 4569
Kinetic Energy Threats: Level 1
7.62×51mm NATO Ball (Ball M80) from 30 meters @ velocity 833 m/s.
5.56×45mm NATO Ball (SS109) at 30 meters with a velocity of 910 m/s.
5.56×45mm NATO Ball (M193) at 30 meters with a velocity of 930 m/s.
European Standard EN 1063: BR 6 S/NS
5,56 × 45 mm NATO Ball (SS109) at 10 Metern with velocity of 910 m/s
7,62 × 51 mm NATO Ball (Ball M80) at 10 Metern with velocity of 830 m/s
Grenade and Mine Blast
Handgrenades (such as DM51, HG85 and RGD5), unexploded artillery fragmenting submunitions, and other small anti personnel explosive devices ( DM-11 AP mine) detonated under the vehicle.
Artillery
155 mm High Explosive at 100 m
Angle: azimuth 360°; elevation: 0 – 18°
Optional
Bulletproof Glassing according to BR 7 S/NS
7,62 x 51 mm AP at 10 Meter with velocity of 830 m/s
Increased under-vehicle blast threat protection, against DM 51,RGD 5 and RGO 78
